Submittal Drawing:GLINK
The GLINK is a cutting-edge dataline interface designed to enhance global programming, monitoring, and control in lighting automation systems. With advanced functionalities, it provides seamless integration, central time synchronization, and robust system monitoring capabilities. Engineered for efficiency and reliability, the GLINK ensures synchronized operations across all lighting automation panels, making it an essential component in modern automated environments.
DESCRIPTION
The GLINK allows access to the dataline for global programming, monitoring and control. The GLINK also provides a central time clocking function which automatically synchronizes/sets the clocks in all of the Lighting Automation Panels.

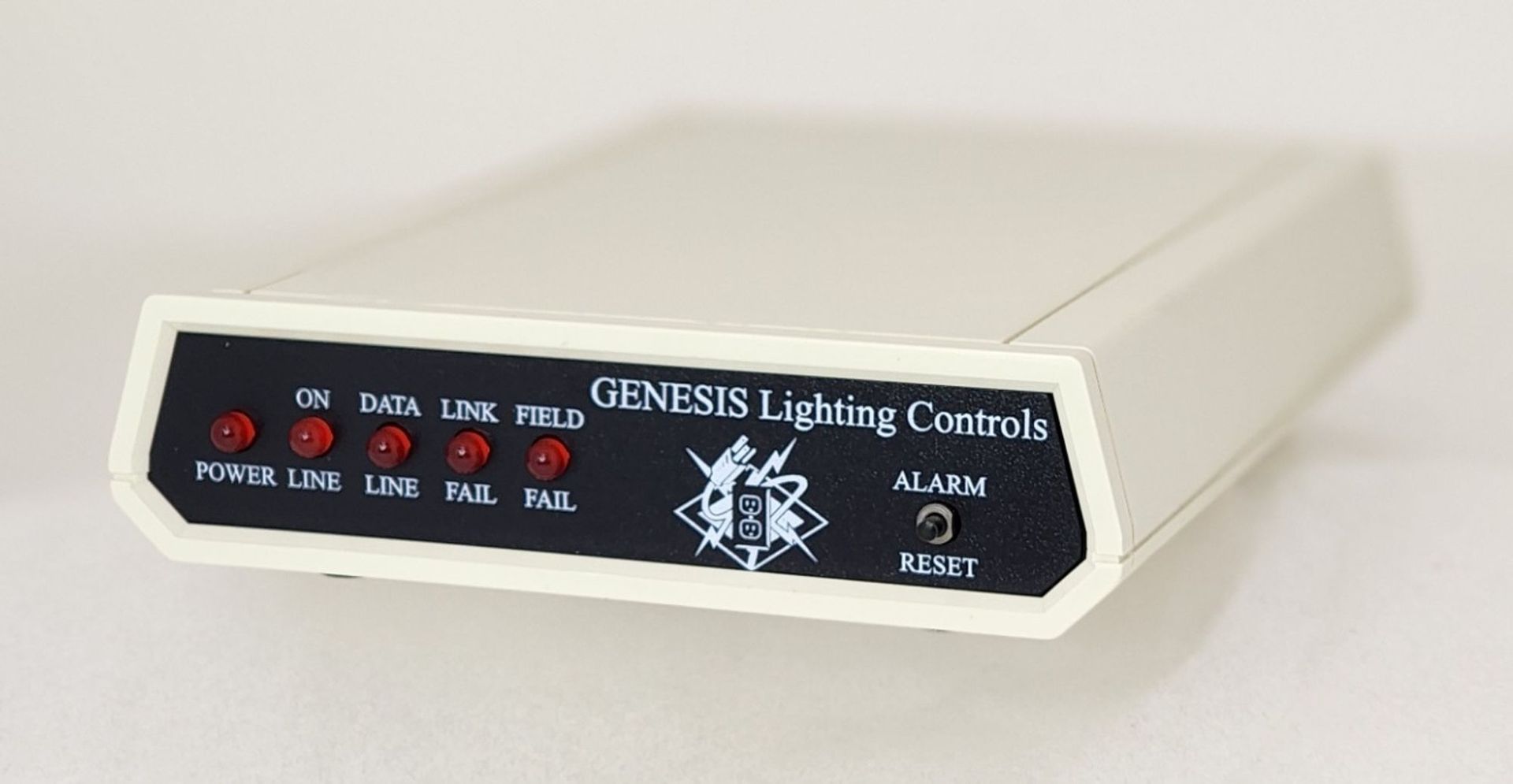

The GLINK is a desk mounted device with system monitoring capabilities and visual indication of:
- Power to the Unit
- On Line Status
- Dataline Power
- Field Failure
The GLINK incorporates a built-in Ethernet Network card which is discoverable with supplied software. No need for comports!
No need for an additional Dataline Power Supply unit as the GLINK now has a built-in Dataline Power Supply.
SPECIFICATIONS
Description: Dataline Interface
Catalog #: GLINK
Operating Environment: 0-55 Degrees C (32-131 F)
0-95% RH, Non Condensing,
Non Corrosive atmosphere.
Weight: 0.3 Kg / 0.5 lb.
Alarm Contacts: 2 Amp, 28 VAC
Power
Requirements: 120 VAC outlet / 12 VDC
Transformer (supplied)
120 VAC outlet / 24 VDC
Transformer (supplied)
FEATURES AND SPECIFICATIONS
The GLINK is more than a standard dataline interface; it’s a desk-mounted powerhouse equipped with a built-in Ethernet network card, eliminating the need for traditional comports. Its visual indicators for power, online status, dataline power, and field failure provide users with real-time system insights. Additionally, the GLINK includes a built-in dataline power supply, simplifying setup and reducing hardware requirements. With its lightweight design (0.3 kg / 0.5 lb) and adaptable operating environment (0–55°C and 0–95% RH), the GLINK is suitable for diverse installations, ensuring reliable performance even in demanding conditions.
TECHNICAL ADVANCEMENTS
As a technically advanced successor to the GE RLINK, the GLINK redefines dataline interface technology. It integrates seamlessly into modern systems with its discoverable Ethernet network card and eliminates the need for additional power supply units. This innovation ensures streamlined installation and cost efficiency. Alarm contacts rated at 2 Amp, 28 VAC, along with dual power requirements (12 VDC or 24 VDC transformers), add to its flexibility and compatibility across different systems.
PRACTICAL APPLICATION AND BENEFITS
The GLINK’s robust functionality makes it indispensable for automated lighting control. By offering a central time clocking function, it guarantees precise synchronization across all connected panels. Its desk-mounted design and system monitoring capabilities make it ideal for both residential and commercial automation systems. The GLINK simplifies operations while enhancing reliability, making it a versatile and invaluable tool in the automation landscape.
This product is a technically advanced version of the GE RLINK
