Submittal Drawing:GS2-32
The GS2-32 switch is a high-quality, reliable component designed for use in various applications that require efficient control and switching. With its sleek design and dependable performance, the GS2-32 is perfect for both industrial and commercial settings. This switch is specifically engineered to be installed in mounting straps with covers or for snap-in panel mounting, providing versatility in installation.
DESCRIPTION
These switches are designed for installation in mounting straps with covers or for snap in panel mounting [19mm (0.75)x33mm (1.3”)}. The line includes 2-button switches with normally open 3 AMP 28 VAC contacts providing a single-pole double-throw configuration. Each switch is provided with wire terminals 110mm (4.25”) 18AWG.
SPECIFICATIONS
Description: GLCS Series Switches
Catalog #: GS2-32 (Unlighted)

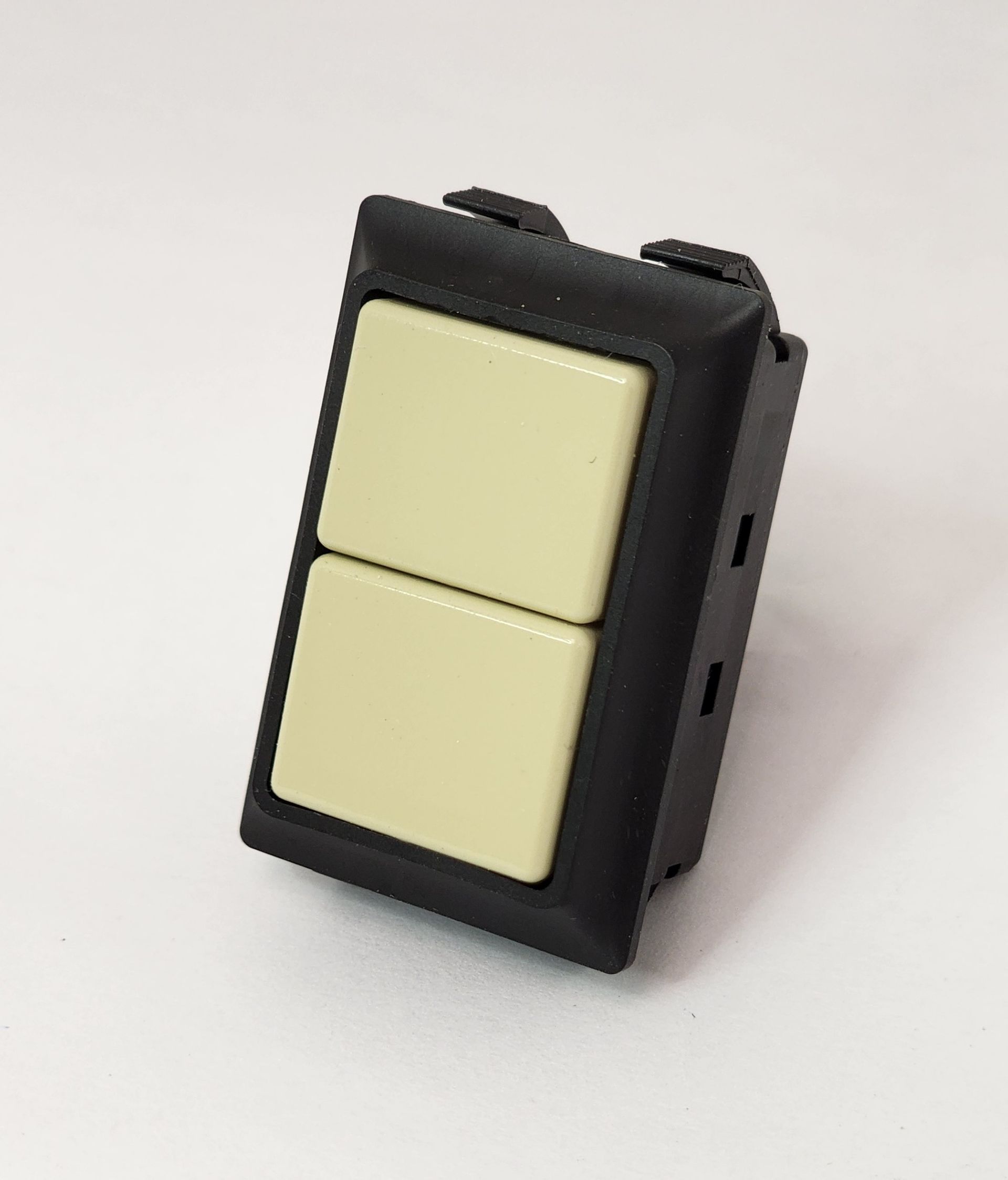

Colour: Ivory Button with Black Trim
Operating Environment: 0-55 Degrees C (32-131°F)
0-95% RH, Non-Condensing
Non-Corrosive atmosphere
FEATURES AND FUNCTIONALITY
Featuring a 2-button configuration, the GS2-32 switch is built with normally open 3 AMP 28 VAC contacts, delivering a single-pole double-throw (SPDT) functionality. This configuration allows for easy control of electrical circuits. The switch operates smoothly under a wide range of conditions and includes wire terminals (110mm or 4.25” 18AWG), ensuring a secure and straightforward connection during setup.
SPECIFICATIONS AND DURABILITY
The GS2-32 comes with an ivory button and black trim, offering a clean and professional aesthetic. Designed to withstand various operating environments, this switch functions effectively in temperatures ranging from 0°C to 55°C (32°F to 131°F) and humidity levels of up to 95% RH, non-condensing. Additionally, it performs optimally in a non-corrosive atmosphere, making it durable and long-lasting for various uses.
This product is a technically advanced version of the GE RS2-32
