Submittal Drawing:GS2-37

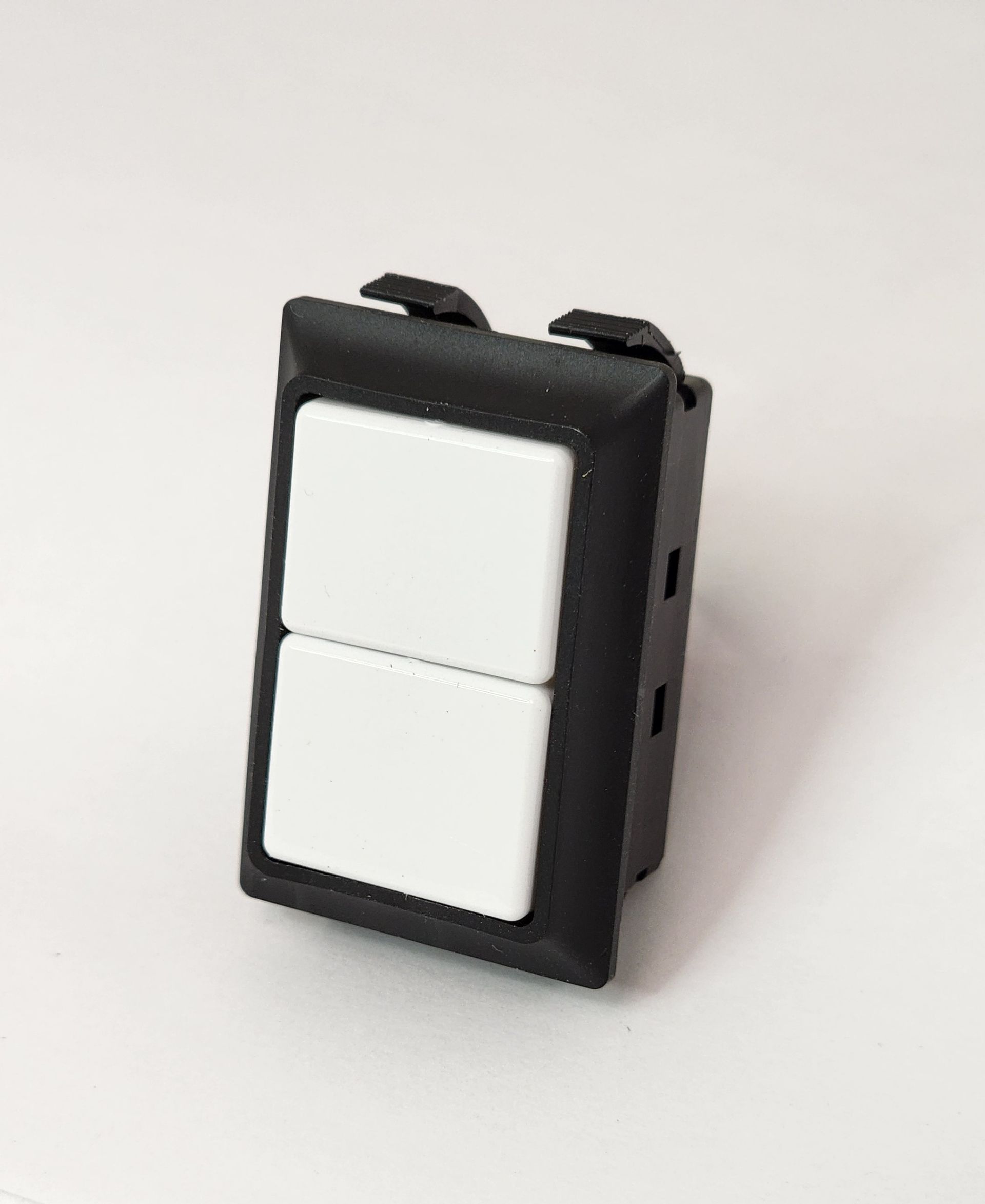

The GS2-37 is part of the GLCS Series of switches, designed to provide reliable performance in a variety of environments. Its compact form factor allows for easy installation into mounting straps with covers or for snap-in panel mounting, making it a versatile choice for a range of applications. With dimensions of 19mm (0.75”) by 33mm (1.3”), this switch is ideal for situations where space is limited yet functionality is crucial.
DESCRIPTION
These switches are designed for installation in mounting straps with covers or for snap in panel mounting [19mm (0.75)x33mm (1.3”)}. The line includes 2-button switches with normally open 3 AMP 28 VAC contacts providing a single-pole double-throw configuration. Each switch is provided with wire terminals 110mm (4.25”) 18AWG.
SPECIFICATIONS
Description: GLCS Series Switches
Catalog #: GS2-37 (Unlighted)
Colour: White Button with Black Trim
Operating Environment: 0-55 Degrees C (32-131°F)
0-95% RH, Non-Condensing
Non-Corrosive atmosphere
FEATURES AND SPECIFICATIONS
The GS2-37 is equipped with a 2-button switch featuring normally open 3 AMP 28 VAC contacts, ensuring a smooth and dependable connection. It operates on a single-pole double-throw configuration, which allows it to handle multiple circuit setups with ease. The switch's wire terminals come in 110mm (4.25”) length, with 18AWG wire for simple wiring and connectivity.
ENVIRONMENTAL DURABILITY
This switch is engineered to withstand a wide range of environmental conditions. It operates effectively within temperatures ranging from 0°C to 55°C (32°F to 131°F) and can function in humidity levels up to 95% relative humidity, non-condensing. Additionally, the GS2-37 is designed for use in non-corrosive atmospheres, making it a robust solution for both indoor and outdoor environments where moisture or corrosive agents may be present.
This product is a technically advanced version of the GE RS2-37
