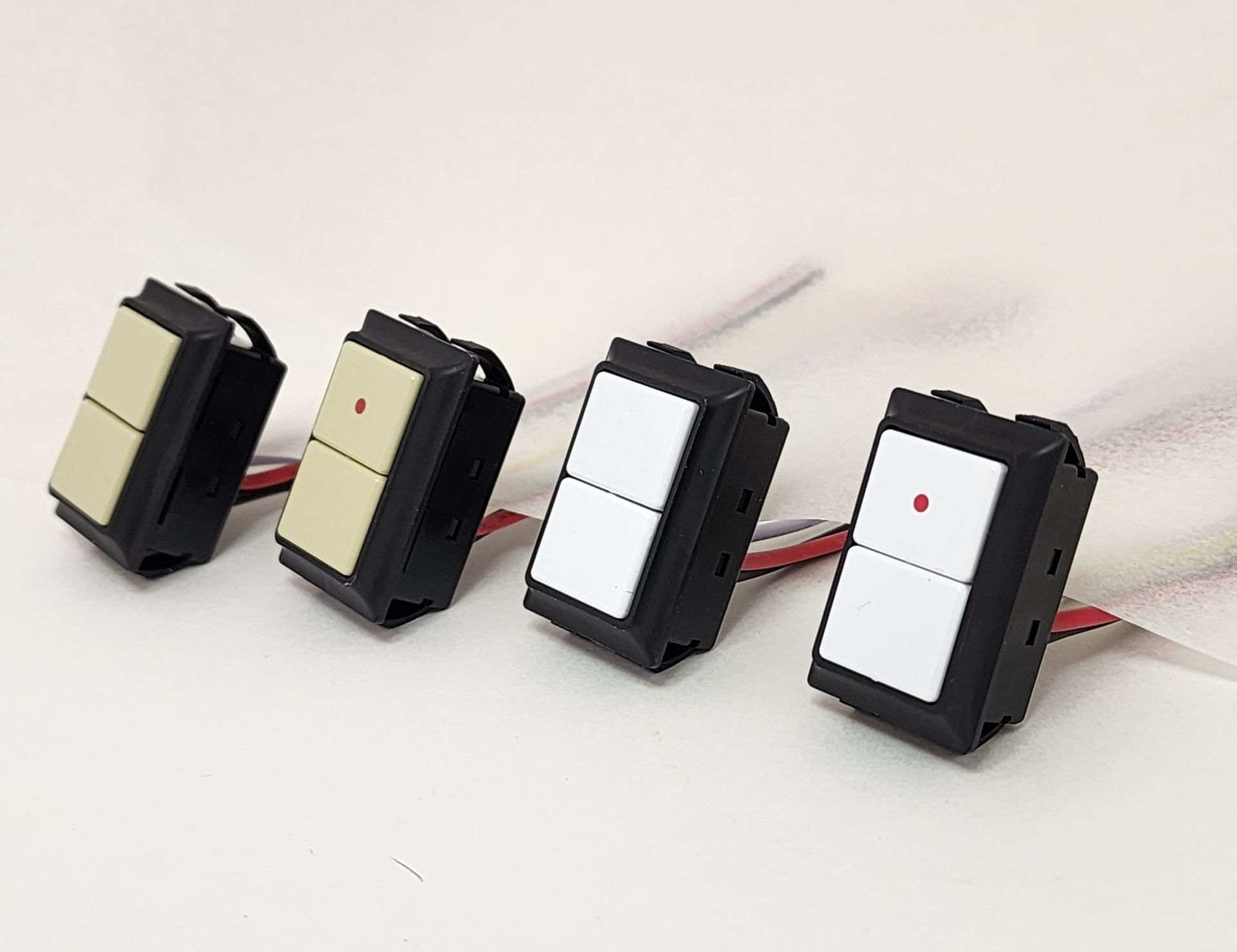

  • A row of light switches are lined up on a table



A black and white drawing of a bell on a white background.

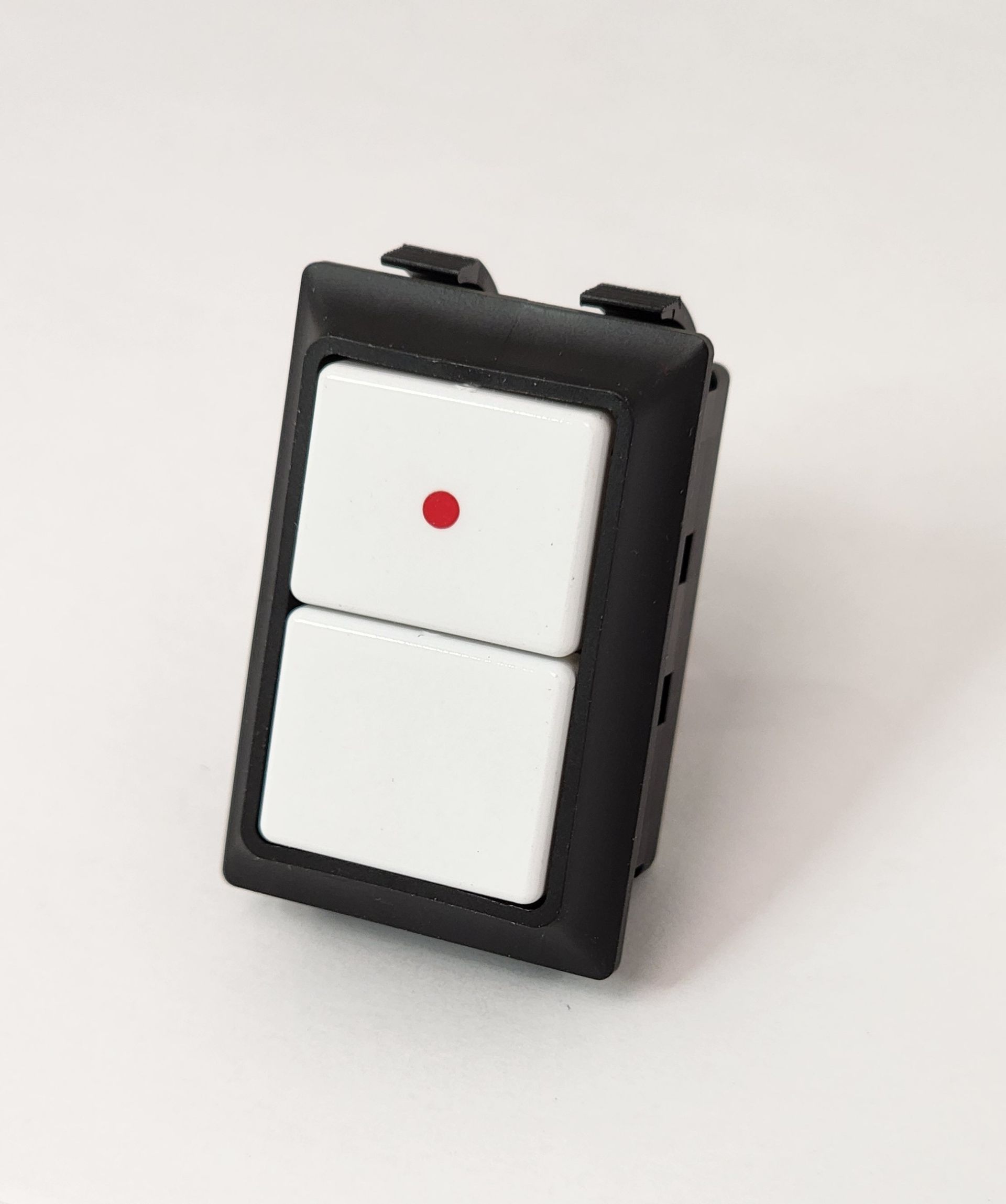

The GS2-37P is a high-quality switch designed for various applications where reliable and efficient operation is crucial. This switch is part of the GLCS Series, known for its robustness and ease of installation. It is specifically designed for mounting in straps with covers or for snap-in panel mounting. The compact dimensions of 19mm (0.75”) x 33mm (1.3”) make it ideal for spaces that require a precise and secure fit. Whether you're working on small or larger systems, the GS2-37P offers a reliable solution to your switch needs.

  • DESCRIPTION

    These switches are designed for installation in mounting straps with covers or for snap in panel mounting [19mm (0.75)x33mm (1.3”)]. The line includes 2-button switches with normally open 3 AMP 28 VAC contacts providing a single-pole double-throw configuration.


    The GS2-32P is a switch with a Pilot light with 0.04 AMP 28 VAC pilot lamp in “ON” button. Each switch is provided with wire terminals 110mm (4.25”) 18AWG.

  • SPECIFICATIONS

    Description: GLCS Series Switches

    Catalog #: GS2-37P (Pilot Light)

    Colour: White Button with Black Trim

    Operating Environment: 0-55 Degrees C (32-131°F)

    0-95% RH, Non-Condensing

    Non-Corrosive atmosphere

  • FEATURES AND FUNCTIONALITY

    The GS2-37P switch features a 2-button configuration with normally open contacts, ensuring seamless operation for various devices. With its single-pole double-throw (SPDT) configuration, the switch can be used in a wide range of setups, offering versatility and flexibility. It supports up to 3 AMP 28 VAC, making it suitable for many electrical tasks while maintaining safety and efficiency. Additionally, the GS2-37P includes a pilot light with a 0.04 AMP 28 VAC rating, which illuminates the "ON" button, offering clear visibility during operation.

  • DURABILITY AND INSTALLATION

    Built to withstand a variety of environmental conditions, the GS2-37P is designed to operate within a temperature range of 0-55°C (32-131°F) and humidity levels of 0-95% RH, non-condensing. This makes it an ideal choice for both indoor and outdoor applications. The switch is also made for use in non-corrosive environments, ensuring that it maintains its integrity and functionality even under challenging conditions. Equipped with 110mm (4.25”) 18AWG wire terminals, installation is straightforward, enhancing the convenience of its use in diverse setups.

This product is a technically advanced version of the GE RS2-37P
